DAOLER Friction Shims: Redefining Strength at Micron Scale
In the enduring challenge of mechanical design, "thin" and "strong" often appear as natural contradictions. Make it too thin, and strength is compromised. Make it thicker, and space constraints become an issue. When connection interfaces are compressed to the millimeter or even micron level, engineers face a critical question: Can something this thin truly be reliable?

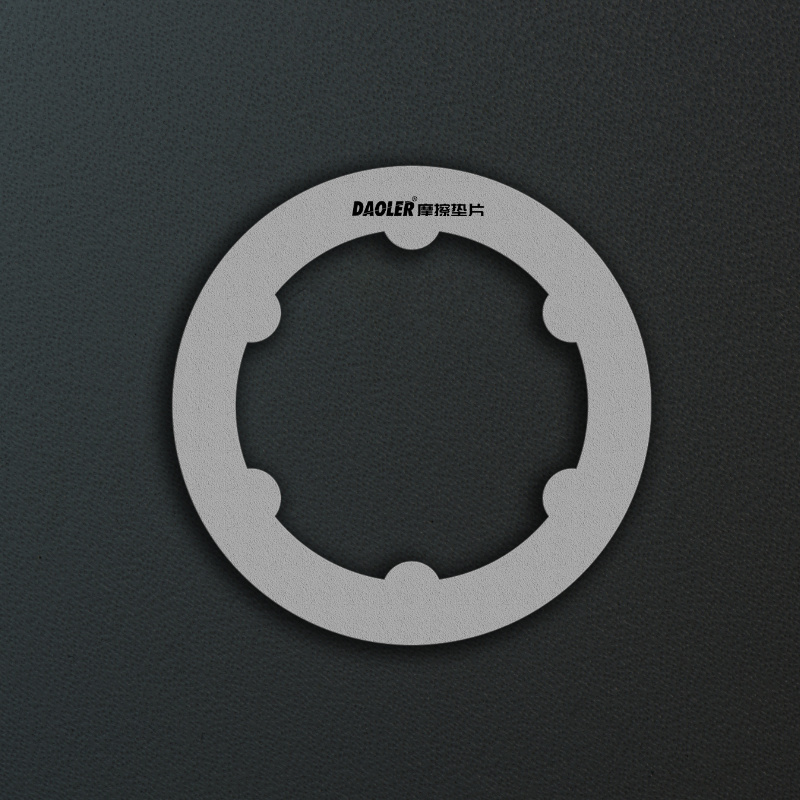

The emergence of DAOLER Ultra-Thin Friction Shims is the definitive answer to this challenge. They prove that true strength lies not in bulk, but in the sophisticated design of the microstructure.
The Definition of Thin: A Design Philosophy, Not Just a Dimension
In the context of DAOLER, "ultra-thin" is never a simple dimensional specification; it is a comprehensive design philosophy.
With a thickness ranging from just 0.05mm to 0.2mm, DAOLER shims add virtually no volume to connection points. This allows them to be discreetly integrated into the most space-constrained equipment—whether it's inside a compact robot joint or the motor mount of a space-limited drone—adding a new performance dimension without altering any existing structural designs.
But that's not all. The true value lies in the fact that as the thickness is minimized, frictional performance is elevated to new heights.
The Technology of Thin: The Art of Micro-World Interlocking
The core of DAOLER Ultra-Thin Friction Shims lies in their unique surface micro-texturing technology. Through an electroless composite plating process, micron-sized diamond particles are precisely embedded into a Ni-P alloy matrix, forming a functional layer.
Under preload force, these hardest known particles (Hardness: 80-100 GPa) act like countless microscopic teeth, biting into the mating metal surface to create a nanoscale mechanical interlock. Test data shows a single diamond particle can generate up to 2.3N of shear resistance, with a contact density of 120-200 particles/mm². This means thousands of micro-anchors are working simultaneously within an area the size of a fingernail.
Achieving a static friction coefficient of 0.4-1.2, DAOLER shims offer a 50%-75% improvement over conventional metal shims. This translates to significantly higher transmittable torque under the same preload, or alternatively, the ability to use smaller fasteners for the same torque requirements, contributing to overall system lightweighting.
The Value of Thin: Systemic Gains Across Four Dimensions
1.Lightweighting: Every Gram Counts
In aerospace, where launch costs can reach approximately $50,000 per kilogram, DAOLER's 0.05-0.2mm thickness can reduce connection point weight by over 50%.
In broader industrial applications, the "friction" design philosophy enabled by DAOLER technology can achieve component weight reductions of 15%-30%, while also reducing fastener usage by up to 50%. A case study on a single-axis robot arm joint showed that a traditional design using 4x M6 bolts with thread locker was optimized to 2x M5 bolts with DAOLER shims, resulting in a 25% weight reduction and a 40% decrease in assembly time.
2.Space Efficiency: Creating Possibility within Limits
Modern equipment design trends towards functional integration and compact structures. The negligible 0.05-0.2mm thickness of DAOLER shims grants designers greater layout freedom within confined spaces.
The value of this space efficiency is particularly pronounced in components like harmonic drive output shafts and robotic wrist joints. The ultra-thin design adapts seamlessly to compact mechanical structures, supporting lightweighting goals without sacrificing performance.
3.Reliability: Addressing Failure at the Interface
Traditional connection methods often suffer from three major issues: vibration loosening, fretting wear, and preload loss. DAOLER shims provide a systematic solution at the interface level:
Vibration Loosening Resistance: Withstands over 20 times more vibration cycles. After 5,000 vibration cycles, traditional shims fail, while DAOLER remains stable.
Preload Retention: Preload loss is less than 8%. After 300,000 vibration cycles, preload retention exceeds 92%.
Fretting Wear Life: Validated for up to 8 million cycles in high-speed rail bogie bolt connection tests.
4.Extreme Environment Adaptability: Seamless Coverage from Polar Cold to High Heat
Temperature Resistance: Standard version operates from -40°C to 180°C, with customizable options for -196°C to 550°C.
Corrosion Resistance: Withstands 1000 hours of salt spray testing without red rust, a 400% improvement over traditional zinc plating.
Surface Pressure: Handles 3920 N/cm², customizable up to 8000 N/cm².
Applications of Thin: From Precision Factories to Deep Space Exploration
Robotics: In collaborative robot harmonic drives, DAOLER shims extend frictional life by three times, enabling 20,000 hours of maintenance-free operation. Applied to front-end fixtures of single-axis robot arms, they reduce end-load and enhance positioning accuracy during high-speed operation.
Aerospace: On aircraft wing skin joints, DAOLER shims reduce bolt load fluctuation amplitude by 40%, preventing stress-induced crack initiation. In satellite optical payload lens mounts, they ensure optical axis stability with deflection < 0.001°.
New Energy & Wind Power: Application in a 5MW wind turbine tower connection showed a maintained static friction coefficient of 0.62μ despite a 40% reduction in bolt preload, cutting annual maintenance costs by 75% and extending bolt retightening cycles from 3 months to 2 years.
Precision Instruments: In optical tables and measurement equipment, DAOLER shims prevent fine adjustment screws from shifting due to minor vibrations, ensuring the stability of optical paths or measurement references.
Implementation of Thin: Engineering Compatibility
For engineers, adopting new technology often raises concerns about system modifications. DAOLER Ultra-Thin Friction Shims demonstrate engineering thinking:
No Design Modification Needed: Standard M8-M16 sizes are compatible for direct replacement.
Simple Installation Process: Degrease surface → Position shim → Stage pre-tightening (30%-60%-100% torque) → 48-hour natural aging → Final torque verification.
Highly Customizable: Supports complex contours with hole positioning accuracy of ±0.05mm and maximum dimensions of 800x600mm.
The Future of Thin: The Evolution of Connection Technology
Looking back at the evolution of fastening technology—from crude initial wedge mechanisms to friction-based connections relying on high preload, and now to the micro-interface engineering represented by DAOLER—a clear trend emerges: connection reliability increasingly depends on design of surfaces and interfaces, rather than sheer size and mass.
The insight from DAOLER Ultra-Thin Friction Shims is this: when confronted with limitations at the macro scale, we should turn our attention to the often-overlooked micro-world. There, countless diamond particles anchor themselves to metal surfaces like a constellation, using their hard "micro-teeth" to build a robust defense line for connection reliability within the ultra-thin space of 0.05-0.2mm.
Thin is not a compromise. It is a new form of strength.
If you are facing connection challenges related to space constraints, lightweighting, or extreme operating conditions, the DAOLER technical team is ready to explore the limitless potential of ultra-thin friction shims with you.
